Unique Engineering Services is leading HT HRC Fuse suppliers in Pune and dealers in Pune. Our products are aimed at fulfilling the increasing requirements of the power distribution systems and industry electrical infrastructure, in the form of safe, reliable and certified products with Adherence to IE & IS Standards. The HT HRC Fuses are aimed to protect transformers, switchgear motors and capacitor banks to ensure a safe operation and long equipment life. We have passed through several years of experience in the provision of electrical protection solution to industrial, commercial, and utility use in High Voltage Fuse.

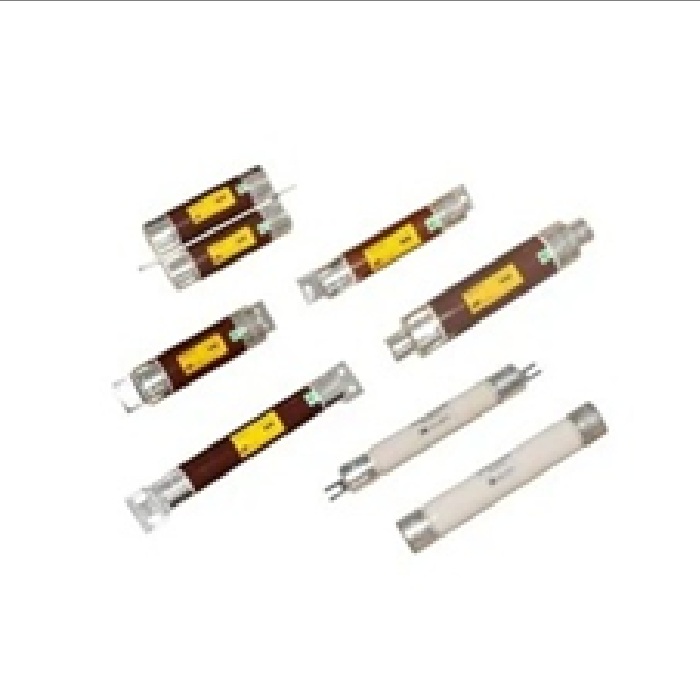

About HT HRC Fuse

It is our duty to offer complete and immediate solutions to switchgear and transformer protection systems to maintain continuous power supply and safety of the system. We provide the High Tension High Rupturing Capacity Fuse to be used in the indoor and outdoor applications, substations, industrial plants, and distribution systems. Such fuses are uniquely engineered to interrupt fault currents fast and efficiently resulting in minimum equipment destruction and downtime is lessened. High Voltage & HRC Fuse manufactured is generally employed in substations, transformer, and switchgear to provide dependable electrical protection.

Key Types of HT HRC Fuses:

As HT HRC Fuse suppliers in Pune, we provided different types according to transformation which are given below.

Cartridge Fuses (Ferrule Type): Cylindrical, porcelain-bodied, and frequently smaller, specialized, and control circuit fuses.
Blade Fuses (NH/DIN Type): These are fuses with a blade contact which are easy to install and remove, commonly found in high current industry.
Potential Transformer (PT) Fuses: Special fuses (high voltage, up to 15.5kV) that are designed with the purpose of protecting the primary windings of potential transformers.
Motor Protection Fuses: Fuses are designed to withstand high-currents during start-up without tripping and to be fast acting in case of fault.
Transformer Protection Fuses: These are types of links that are used to protect transformers.

Technical Specifications of HT HRC Fuse

As HT HRC Fuse Suppliers in Pune, we have added here detailed specifications of this Fuse.

Feature	Specification Details
Voltage Ratings	11 kV, 22 kV, and 33 kV
Current Ratings	1 Amp to 630 Amps (Standard ranges: 10A, 20A, 40A, 63A, 80A, 100A, 200A)
Breaking Capacity	40 kA to 50 kA (High rupturing capacity)
Versions Available	DIN Type and BS (British Standard) Versions
Application Medium	Suitable for use in Air and Oil (Oil-tight versions available)
Construction Material	High-strength Porcelain (Ceramic) or Steatite body
Fuse Element	Pure Silver (Ag) wire or strips for high conductivity
Arc Quenching Medium	High-purity Granulated Quartz or Silica Sand
Indication Mechanism	Striker Pin provision for visual indication and trip-bar operation
Standards Compliance	IS-9385, IEC 282-1, and BS-2692
End Caps	Copper/Brass with Silver or Tin Plating for low contact resistance

Characteristics of HT HRC Fuse

High rupturing capacity
HT HRC Fuse is able to effectively disrupt very high fault currents safely without explosion and damage to adjacent equipment and Horn Gap Fuse is best suited to high voltage systems.
Fast fault interruption
The fuse acts in a very fast manner when there is short circuiting or overloading of the electrical equipment and cables, minimizing the damage done on the electrical equipment and cables.
Strong ceramic body
HV Fuses has a ceramic body that is resistant to high temperature and mechanical stress when the fault occurs.
Adherence to IS and IEC standards.
HT HRC Fuse is produced according to national and international standards, which provide the safety and reliability of the power systems.
Low power loss
The fuse reduces energy wastage when operating and improves the efficiency of the system and wastage of HT HRC DIN Fuse.
In-door and out-door appropriateness.
The HT HRC Fuse is flexible and may be installed in substations, switchgear panels and pole-mounted.

Benefits of HT HRC Fuse

As HT HRC Fuse dealers in Pune, we have fast and precise fault clearance fuses that improve the safety and stability of the essential electrical systems which are given below.

Big Rupturing Capacity: Works well with short circuit currents without damages.
Voltage Range: 11kV, 22kV and 33kV in Composite Polymer Drop Out Fuse.
Stable Protection: Developed to protect transformers, motors and capacitors banks.
Low Power Loss: Minimizes power consumption.
Ceramic Body: It can withstand high thermal and mechanical loads.
ISI / IEC Certified: Produced in compliance with the national and international quality standards.
Indoor/Outdoor Use: Applicable to pole mounted and switchgear panel in HT HRT Fuse.
Quick Fault Isolation: It assists in reducing system damage in case of overload or faults.
Corrosion-Resistant Contacts: Provides long life of the contact even at harsh conditions.
Developed Ratings: Electrical Fuse may be customized to meet system needs.

Applications of HT HRC Fuse

As HT Fuse dealers in Pune, our fuse is applicable in different sites and industries which are given below.

Transformer protection
The use of HT HRC Fuse is common in overcurrent and short circuit fault protection of transformers to maintain stable power supply.
Switchgear and substations
It finds application in switchgear panels and substations to isolate faults and to protect electrical distribution systems.
Power distribution in industries.
HT HRC Fuse is applied in industrial plants and factories, to guard heavy machinery and power systems.
Capacitor banks and motors
It shields capacitor banks and motors against overloading and fault currents to enhance equipment reliability in PT FUSES.
Energy and Utility Systems that are Renewable.
HT HRC Fuse is applicable in power utilities and renewable energy systems to provide protection to high voltage equipment and distribution systems.

Why choose us?

Dependable and mature supplier.
We possess a rich background in electrical products and services which means good supply of products and technical support.
Standard products and certified.
HT HRC Fuses are in compliance with standards of IS and IE making them very safe and efficient.
Quality assurance
We provide high grade material fuses whose quality is highly checked to last longer in AVT FUSES.
Customer-focused approach
We offer personalized services, engineering advice, and timely services to fulfill customer needs.

Unique Engineering Services is well-known HT HRC Fuse suppliers in Pune and dealers in Pune is a very important safety device in the high voltage electrical systems and this is a reliable protection device against overloads and short circuits. It guarantees the safety of the systems, protection of the equipment, and stable power supply in industries and utility systems. Having certified quality, high-durability construction, and rapid fault interruption, HT HRC Fuse is a perfect alternative to the current power systems.

Use Us as your preferred supplier of HT HRC Fuse. Call us now to get HT HRC Fuse of high quality. Receive professional advice and quality electric safety products. Find power system safety, efficiency and reliability with us.

FAQs

HT HRC Fuse is used to protect high voltage equipment with interrupting overload and short circuit currents.

It is applied in transformers, switchgear, substations, industrial power systems and capacitor banks.

Yes, HT HRC Fuses are produced based on the standards of safety and quality of HT HRC Fuses, which is IEC and IS.

Yes, it can be used in electrical distribution systems both in indoor and outdoor use.
